Profile 30×30 – slot 8
$99.9
$155.84

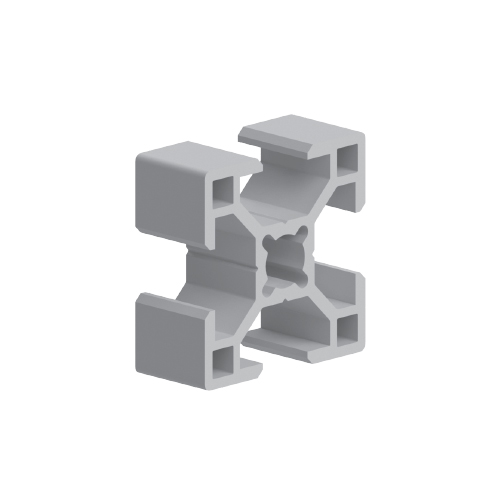

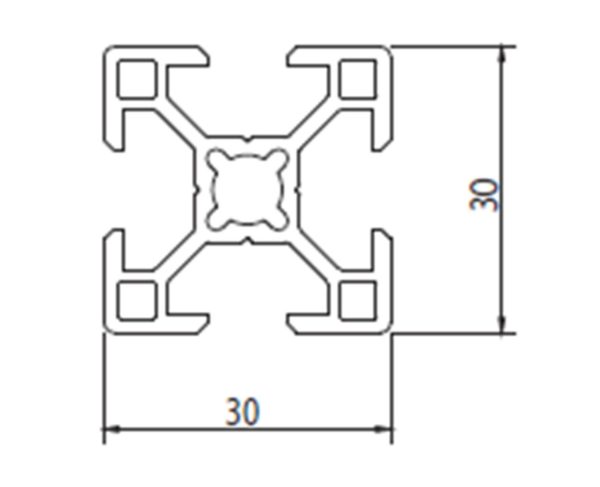

T-slot aluminium profile: 30×30 profile with 8mm slot (BH Line) Product code: ALS.084.107.002 Moment of Inertia Section Modulus Section Area Weight Ix cm4 Iy cm4 Wx cm3 Wy cm3 mm2 kg/m 2.60 2.60 1.73 1.73 273 0.74 Colour: Natural anodized Bar Length: 6040 mm Core hole taps to M8 Suggest an M8x25 bolt, M8 Nut and 13×13 square washer for use in the t-slot Use 30×30 slot-8 end cap ALS.084.201.041 Alternative profiles include: ALS.084.100.003 – 30×30 with 6mm slot ALS.084.107.006 – 30×30 3 slot with 8mm slot ALS.084.101.030 – 32×32 4 slot ALS.084.102.001 – 40×40 with 8 mm slot How to Videos We’ve put together a series of short videos showing the most common methods to connect the t-slot profile. Check our Videos page for tips and tricks. Profile cutting We offer a profile cutting service so that your profile can be cut to size. Each cut is $3.00.Click the following link to go to our web-store profile cutting service – PROFILE CUTTING. Then click here to send us your cutting list using our Cutting List Worksheet. Need more info on payments, freight costs or order collection? Please read our FREQUENTLY ASKED QUESTIONS for more information on these questions and more.
30 Series Profiles
