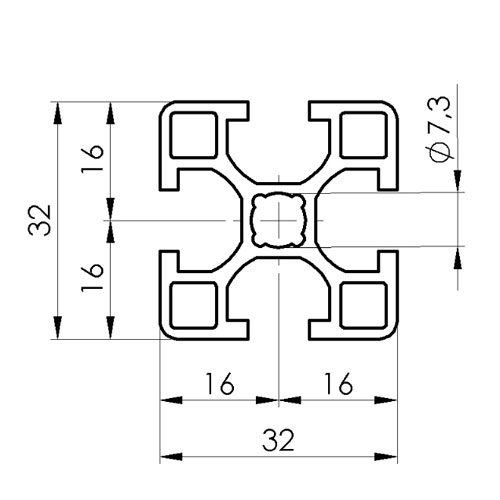

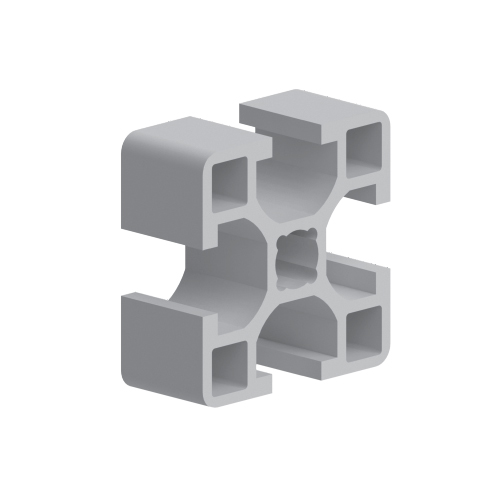

T-slot aluminium profile: 32×32 4-slots Product code: ALS.084.101.030 Moment of Inertia Section Modulus Section Area Weight Ix cm4 Iy cm4 Wx cm3 Wy cm3 mm2 kg/m 3.23 3.23 2.02 2.02 339 0.87 Colour: Natural anodized Bar Length: 6040 mm Core hole taps to M8 (M8x25 bolt) Use 7mm drill bit for pilot holes when using standard Nut & Bolt connection Suggest an M8x25 bolt and M8 Spring Nut for use in the T-Slot Profile cutting We offer a profile cutting service so that your profile can be cut to size. Each cut is $3.00. Click the following link to go to our web-store profile cutting service – PROFILE CUTTING and to add the number of cuts required to your shopping cart. Then click here to send us your cutting list using our Cutting List Worksheet or simply type the cutting instructions into the Comments field at check-out.
