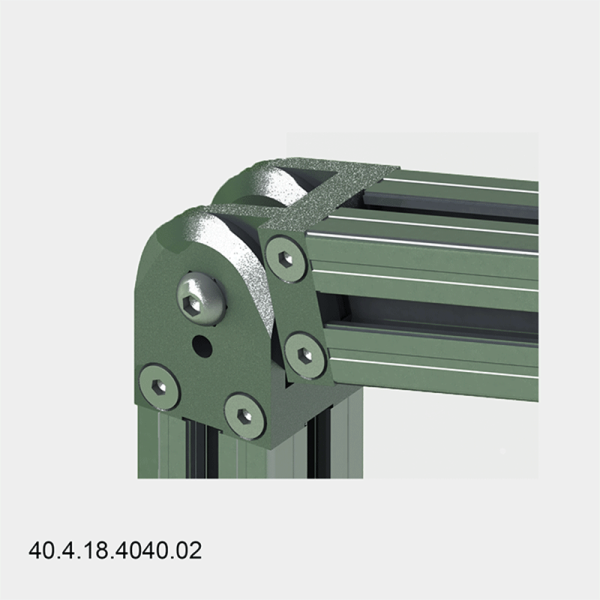

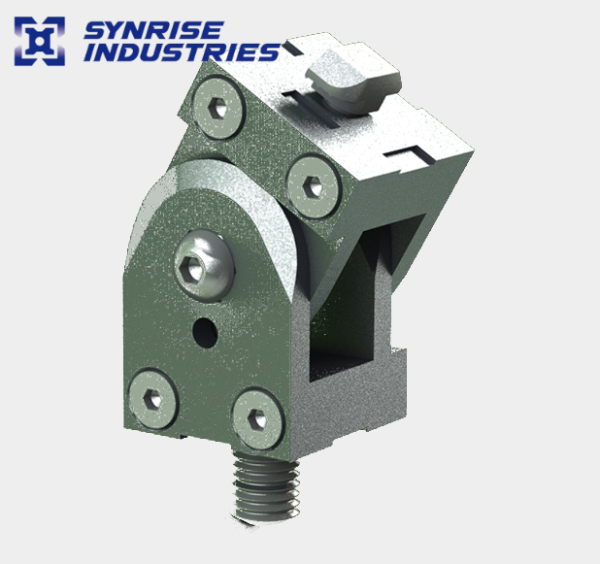

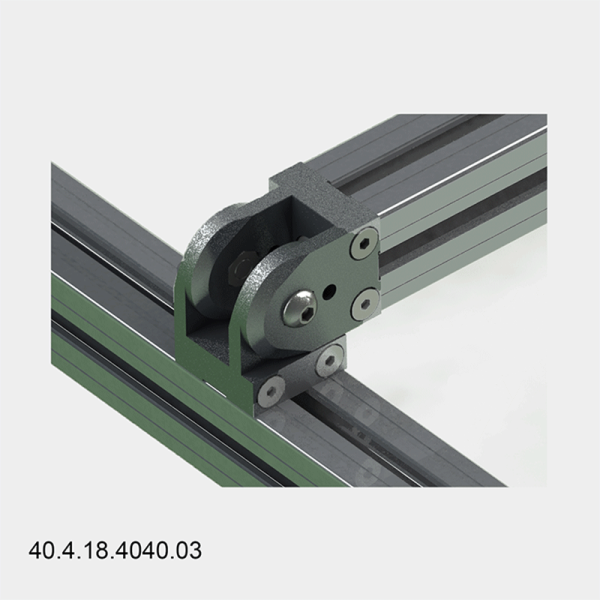

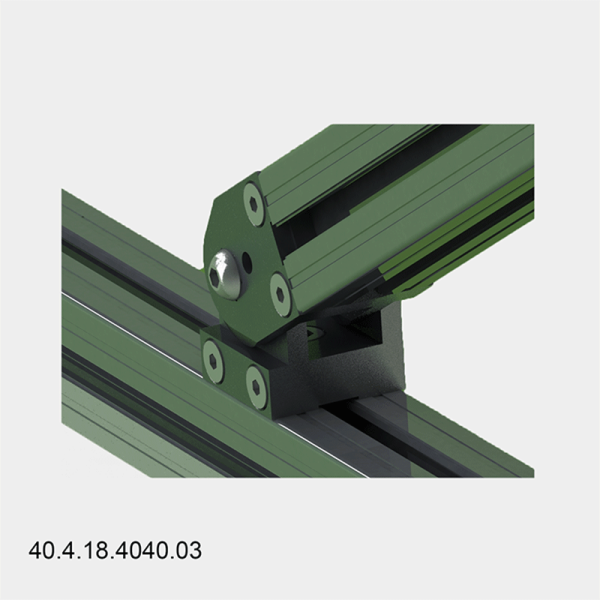

Aluminium Profile Corner Joint—profile hinges for heavy-duty.Stable connection at any angle of adjustment from 0° to 180°.Suitable for rapid adjustment.Aluminium Profile Corner JointSeriesModular Assembly SystemGroupMiscellaneous AccessoriesMaterialZinc plated CSColorSilverProduct Introduction>>DimensionsDescriptionFeaturesConnection TypeFastenerSetsUnit Weight(g/pcs)Part No.MatchingProfile4040 Swivel BracketA2xBC59440.4.18.4040.02PG40B1xBC 1xJ59240.4.18.4040.03C1xBC 1xJ59240.4.18.4040.044060 Swivel BracketA2xBC68040.4.18.4060.02B1xBC 1xJ69540.4.18.4060.03C1xBC 1xJ69540.4.18.4060.04 >>Related Fastener SetsBC: GB7085 hex socket bolt (M8x20 Zinc plated CS) M14/M8 thread insert (Zinc plated CS)J: GB7085 hex socket bolt (M8x16 Zinc plated CS) pre-set square nut (Zinc plated CS)T-Slotted Framing Pivots TypeType AType BType CM14 thread in core bore for both profilesM14 thread in core bore for one profileM14 thread in core bore for one profileThreading depth 22mmThreading depth 22mmThreading depth 22mmM14/ M8 threaded insertM14/ M8 threaded insertM14/ M8 threaded insertFeatureFreedom profile connection of fixed, freely selectable or adjustable anglesRapid adjustment of angle available for different application purposesCan be fixed at any angle by pinning.About T-Slotted Framing PivotsMaterial:High quality zinc alloy.High-strength zinc alloy die casting material for beautiful and high performance.Used for:It is widely used in the construction of industrial aluminum frame structures,3D printers,CNC routers,CNC laser cutting machines,robotic projects,etc.Connect aluminum profile with flexible angle,and fix them after free adjustment.Package and ShipmentRegular profile accessories – PE film inside and pack with pallet.Profile cut to size – 5ply corrugated carton with PE film inside.Accessories – carton with plastic container inside.Customized package is available.
