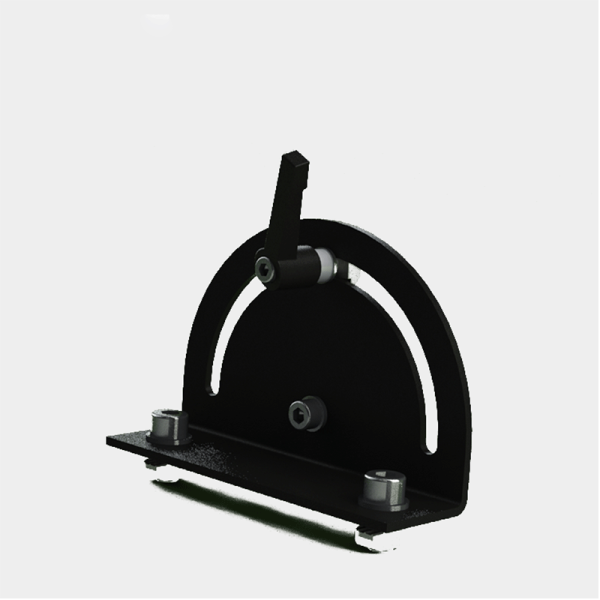

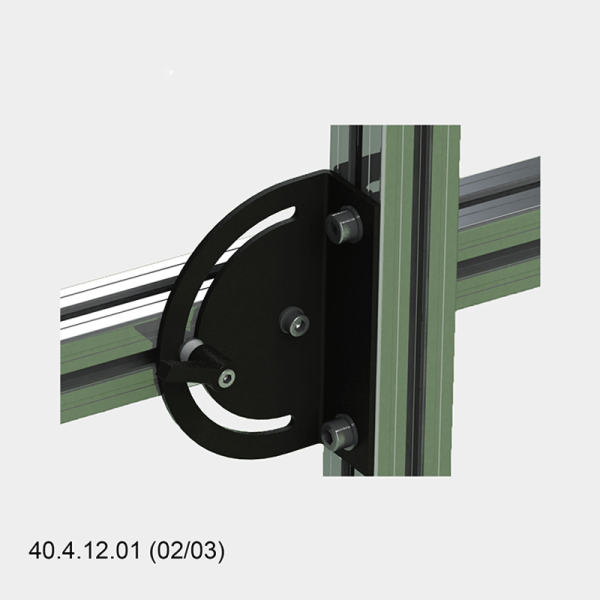

Pivot PlateSeriesModular Assembly SystemGroupMiscellaneous AccessoriesMaterialElectrophoresis CSColorBlackProduct Introduction>>DimensionsDescriptionSection ImageFastenerSetsP1(mm)P2(mm)Unit Weight(g/pcs)Part No.Matching PGSwivel plate,100×28———16030.4.12.01PG301xAB 3xS——26430.4.12.02Swivel plate,130×38———16040.4.12.01PG401xAA 1xS 2xUDPG40PG3029340.4.12.021xAC 1xAD 2xUDPG40PG40/4530940.4.12.03———16045.4.12.01PG451xAA 1xS 2xUDPG45PG3029345.4.12.021xAC 1xAD 2xUDPG45PG40/4530945.4.12.03 Pivot Plate ApplicationThe pivot holder plate is applicable with many modular frames and provides a better user experience.For example, the writing board with an adjustable tablet is one of the most popular products of the lean production series.Assembled from strut profiles, four castors, whiteboard, and swivel plate. By connecting the board to the pivot plate, the users can easily adjust the angle of the board to the most comfortable position.Quick and Easy Order in Four Steps:Select the profile cross-section, surface, and length.Specify the slot for the machining.Define the parameters:– Drilling, milling, or cutting?– Distance from the profile end face.Send order/ inquiry directly to our e-mail.
