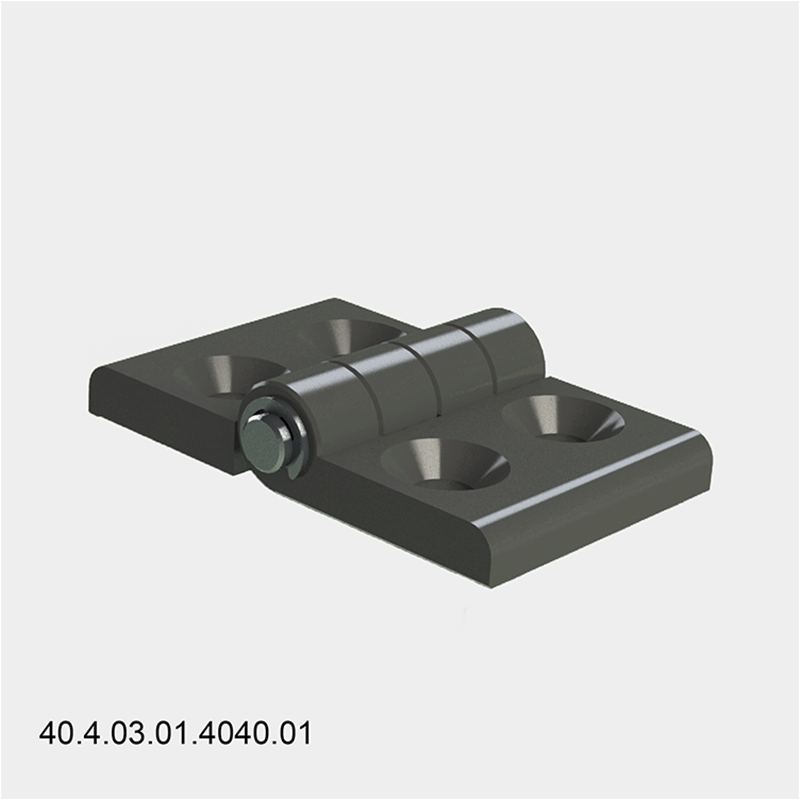

aluminium hingesSeriesModular Assembly SystemGroupDoor and Window FittingsMaterialZinc plated CSColorBlackProduct Introduction>>Dimensions of PG20DescriptionImageFastenerSetsUnit Weight(g/pcs)Part No.MatchingProfilePA6 Hinge 20/204xD21720.4.03.01.2020.01PG204xD2320.4.03.01.2020.02>>Dimensions of PG30/ PG40ImageDescriptionFastenerSetsL1(mm)L2(mm)H1(mm)H2(mm)D1(mm)D2(mm)Unit Weight(g/pcs)Part No.MatchingProfilePA6 Hinge 30/304xL128281515Ø6.5Ø6.55430.4.03.01.3030.01PG304xL28281515Ø6.5Ø6.56830.4.03.01.3030.02PA6 Hinge 30/402xL1 2xM128381520Ø6.5Ø8.56330.4.03.01.3040.01PG30PG402xL 2xM28381520Ø6.5Ø8.59230.4.03.01.3040.02PA6 Hinge 40/404xM138382020Ø8.5Ø8.57240.4.03.01.4040.01PG404xM38382020Ø8.5Ø8.511640.4.03.01.4040.02 >>Related Fastener SetsD: DIN7991 sunk bolt (M4x8 Zinc plated CS) T nut (M4 Nickel plated CS)D2: DIN7991 sunk bolt (M4x8 Zinc plated CS)D3: T nut (M4 Nickel plated CS)L: DIN7991 sunk bolt (M6x14 Zinc plated CS) T nut (M6 Nickel plated CS)L1: DIN7991 sunk bolt (M6x14 Zinc plated CS)L2: T nut (M6 Nickel plated CS)M: DIN7991 sunk bolt (M8x16 Zinc plated CS) Pre-set square nut (M8 Nickel plated CS)M1: DIN7991 sunk bolt (M8x16 Zinc plated CS)M2: Pre-set square nut (M8 Nickel plated CS)FeatureUniversal lightweight hinge for doors and lids.Fmax = 300 NThe door can be swung around to 180°.The slots allow the hinge to be adjusted and used for slot 8 profiles.FAQQ: How could I select the right dimension of the hinge for the door/ window of the frame?A: We recommend choosing the right hinge according to the profiles and design of the frame. For customized service, given the data of H1, H2, D1, and D2, we can process the exact hinges as required.Q: How to choose between steel hinges and aluminum ones?A: You can select the hinge type based on the load-carrying capacity required. Steel hinges are designed for medium loading duties.Q: Is there any kit in stock ready for shipment?A: Yes, we have a bulk stock for both profiles and accessories generally used.
