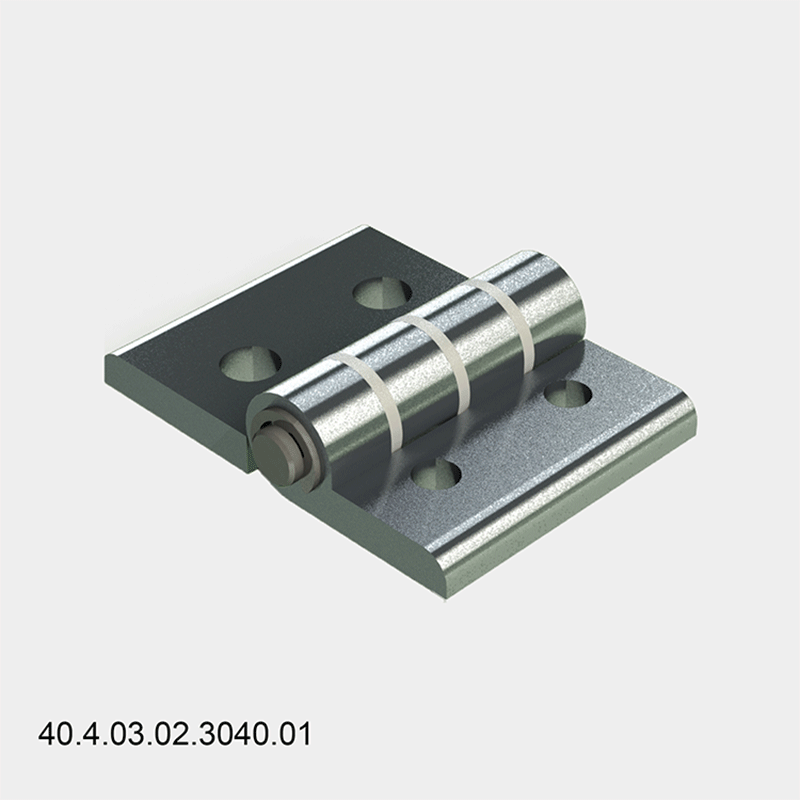

SeriesModular Assembly SystemGroupDoor and Window FittingsMaterialAluminum Alloy SteelColorSilver/ Black Lift-off hingesThis type of hinge is a perfect choice for removable windows or doors with areas that need constant maintenance.Fixed position hingesFixed type hinges can snap into position at predetermined angles. If the door is very heavy? Please try our heavy-duty aluminum alloy hinges.Round hole hingesAvailable for doors or windows designed to swing to 135°。Counterbore hingesThe doors or windows connected with counterbore hinges can swing to 180° position.We are also offering customize service to create a hinge solution according to your needs.Product Introduction>>DimensionsImageDescriptionFastenerSetsL1(mm)L2(mm)H1(mm)H2(mm)D1(mm)D2(mm)Unit Weight(g/pcs)Part No.MatchingProfileAl Hinge 30/304xN128281515Ø6.5Ø6.58030.4.03.02.3030.01PG304xN28281515Ø6.5Ø6.59830.4.03.02.3030.02Al Hinge 30/402xN1 2xP128381520Ø6.5Ø8.59730.4.03.02.3040.01PG30PG402xN 2xP28381520Ø6.5Ø8.513130.4.03.02.3040.02Al Hinge 30/452xN1 2xP128381522.5Ø6.5Ø8.59730.4.03.02.3045.01PG30PG452xN 2xP28381522.5Ø6.5Ø8.513130.4.03.02.3045.02Al Hinge 40/404xP138382020Ø8.5Ø8.511340.4.03.02.4040.01PG40PG454xP38382020Ø8.5Ø8.516240.4.03.02.4040.02>>Related Fastener SetsN: ISO7380 round head bolt (M6x12 Zinc plated CS) M6 washer (Zinc plated CS) T nut (M6 Zinc plated CS)N1: ISO7380 round head bolt (M6x12 Zinc plated CS) M6 washer (Zinc plated CS)N2: T nut (M6 Zinc plated CS)P: ISO7380 round head bolt (M8x16 Zinc plated CS) M8 washer (Zinc plated CS) Pre-set square nut (M8 Zinc plated CS)P1: ISO7380 round head bolt (M8x16 Zinc plated CS) M8 washer (Zinc plated CS)P2: Pre-set square nut (M8 Zinc plated CS)FAQQ: How could I select the right dimension of the hinge for the door/ window of the frame?A: We recommend choosing the right hinge according to the profiles and design of the frame. For customized service, given the data of H1, H2, D1, and D2, we can process the exact hinges as required. Q: How to choose between steel hinges and aluminum ones?A: You can select the hinge type based on the load-carrying capacity required. Aluminum hinges can afford a higher loading weight.Q: Is there any kit in stock ready for shipment?A: Yes, we have a bulk stock for both profiles and accessories generally used.ServiceYour various requirements could be realized by our complete industrial chain, including: standard kits ex-factoryprofiles and fittings cut to size according to customers’ assembly purposemolding for profiles and accessoriesengineer supporting individual application
