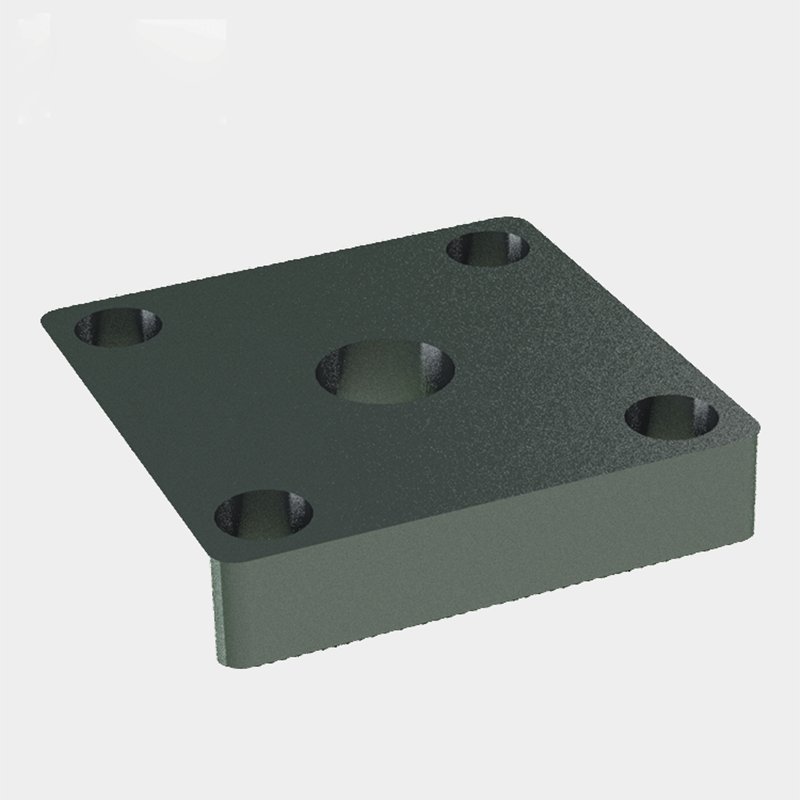

Mounting PlateSeriesModular Assembly SystemGroupGround FittingsMaterialCSColorBlack/ SilverProduct Introduction>>DimensionsDescriptionFeaturesFastenersDUnit Weight(g/pcs)Part No.MatchingProfile30×30 mounting plate—M124230.4.07.1.3030.12.01PG302xNAM127430.4.07.1.3030.12.0230×60 mounting plate—M127930.4.07.1.3060.12.012xRM1212330.4.07.1.3060.12.02–M147930.4.07.1.3060.14.012xRM1412330.4.07.1.3060.14.0260×60 mounting plate–M1221230.4.07.1.6060.12.014xRM1230030.4.07.1.6060.12.02–M1421230.4.07.1.6060.14.014xRM1430030.4.07.1.6060.14.02–M1621230.4.07.1.6060.16.014xRM1630030.4.07.1.6060.16.02–M2021230.4.07.1.6060.20.014xRM2030030.4.07.1.6060.20.0240×40 mounting plate—M128140.4.07.1.4040.12.01PG404xYM1210540.4.07.1.4040.12.02—M148140.4.07.1.4040.14.014xYM1410540.4.07.1.4040.14.0240×80 mounting plate—M1213840.4.07.1.4080.12.014xYM1216240.4.07.1.4080.12.022xBCM1219440.4.07.1.4080.12.03—M1413840.4.07.1.4080.14.014xYM1416240.4.07.1.4080.14.022xBCM1419440.4.07.1.4080.14.03—M1613840.4.07.1.4080.16.014xYM1616240.4.07.1.4080.16.022xBCM1619440.4.07.1.4080.16.0380×80 mounting plate—M1638040.4.07.1.8080.16.014xBCM1649240.4.07.1.8080.16.02—M2038040.4.07.1.8080.20.014xBCM2049240.4.07.1.8080.20.02 >> Related AccessoriesFasteners compatible with the base plate are available for your requirement.NA: GB7085 bolt (M5x25 Zinc plated CS)R: GB7085 bolt (M6x20 Zinc plated CS) Threaded insert (M14/ M6)BC: GB7085 bolt (M8x20 Zinc plated CS) Threaded insert (M14/ M8)Y: GB7085 bolt (M6x20 Zinc plated CS)Aluminium Floor Mount Base Plates FeaturesStable cap for the end faces of profilesFor securely fastening castors and adjustable feetProducts connection from horizontal is also availableInstallationThe mounting plate/ transport plate 30×30 and 40×40 can be screwed into the corner bores in the end faces of the profiles or onto the sides of the profiles. Then screw the threaded spindles of adjustable feet through the core bore of the plates.Base plates 30×60 and 40×80 can be screwed into the core bores in the end faces of the profiles with matching fasteners. The bore in the middle is for the assembly of leveling feet.The specific secure connection plate 60×60 and 80×80 are screwed into the core bores of profiles at the end face. The threaded hole in the center accommodates castors and feet.
