Aluminium Profile Base Plates

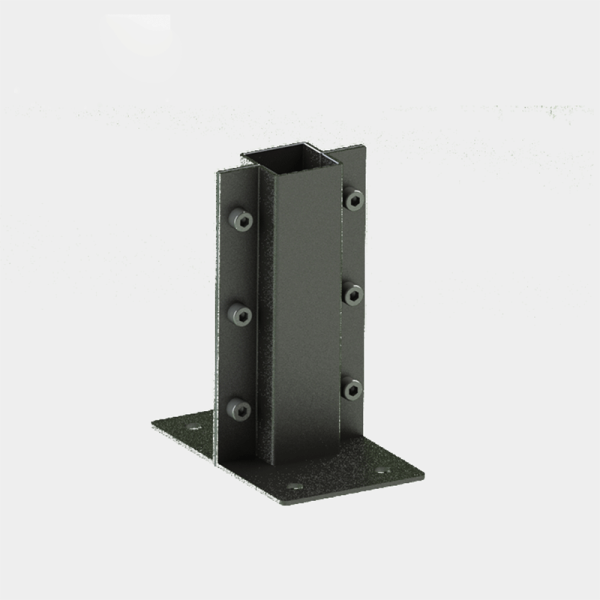

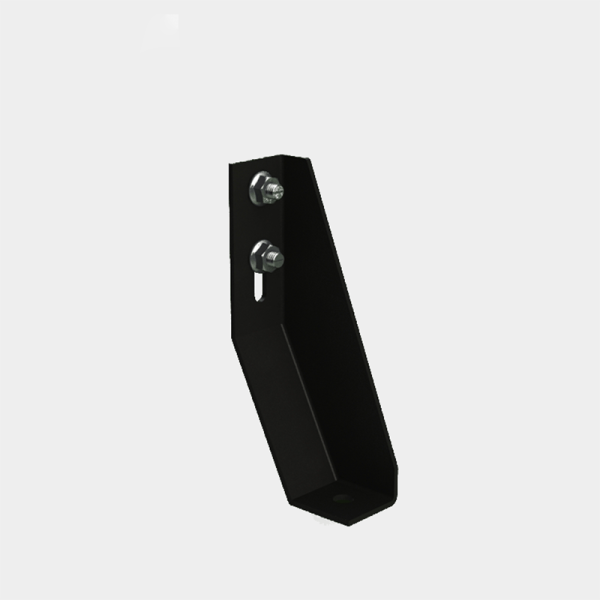

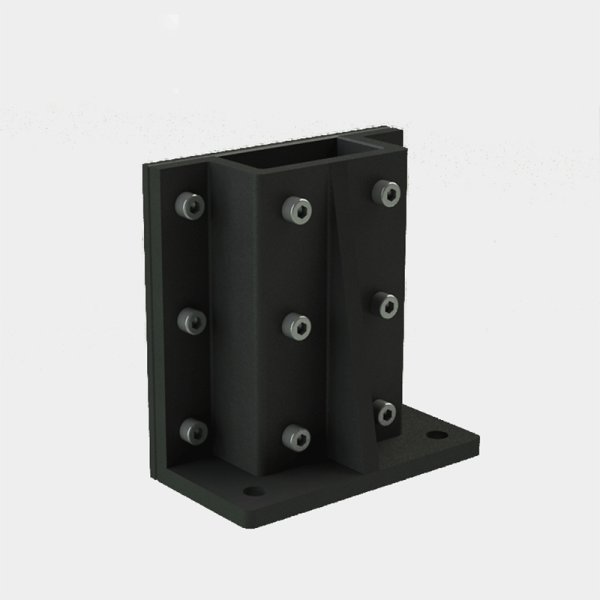

aluminum base plateSeriesModular Assembly SystemGroupGround FittingsMaterialCarbon steel/ Cast ironSurface TreatmentElectrophoreticColorBlackProduct Introduction>>DimensionsDescriptionFeaturesMatching FastenerUnit Weight(g/pcs)Part No.MatchingProfileBase plate-30×30—45830.4.09.3030.01PG304xUA52630.4.09.3030.02Base plate-30×60—85630.4.09.3060.018xUA99230.4.09.3060.02Base plate-60×60—101630.4.09.6060.0112xUA122030.4.09.6060.02Base plate-40×40—168040.4.09.4040.01PG406xXL179740.4.09.4040.02Base plate-40×80—385040.4.09.4080.016xU 6xAP412640.4.09.4080.02Base plate-80×80—536040.4.09.8080.0112xU 6xAP577740.4.09.8080.02Base angle(left/ right) Left—30240.4.08.1.012xUD34940.4.08.1.02Right—30240.4.08.2.012xUD34940.4.08.2.02 >>Matching FastenersFasteners compatible with the base plate are available for your requirement.UA: M6 flange nut (Zinc plated CS) M6x20 T nut (Nickel plated CS)U: GB7085 hex socket bolt (M8x16 Zinc plated CS) M8 Gasket (Zinc plated CS) *2 M8 square nut with spring (Zinc plated CS)AP: GB7085 hex socket bolt (M8x25 Zinc plated CS) M8 Gasket (Zinc plated CS) M8 standard nut (Zinc plated CS)XL: GB7085 hex socket bolt (M8x16 Zinc plated CS) M8 Gasket (Zinc plated CS) *2 M8 standard nut (Zinc plated CS)UD: GB7085 hex socket bolt (M8x14 Zinc plated CS) M8 Gasket (Zinc plated CS) *2 M8 square nut with spring (Zinc plated CS)FeaturesFor heavy-duty and non-movable equipmentFor fastening to walls and floorsExtremely stable and extremely flexibleSecure floor anchoring of constructionIdeal for fastening machinery that has already been installed and alignedBulk Storage for Standard Profiles and FittingsSufficient stock for strut profiles and accessories ensures timely production and delivery.
