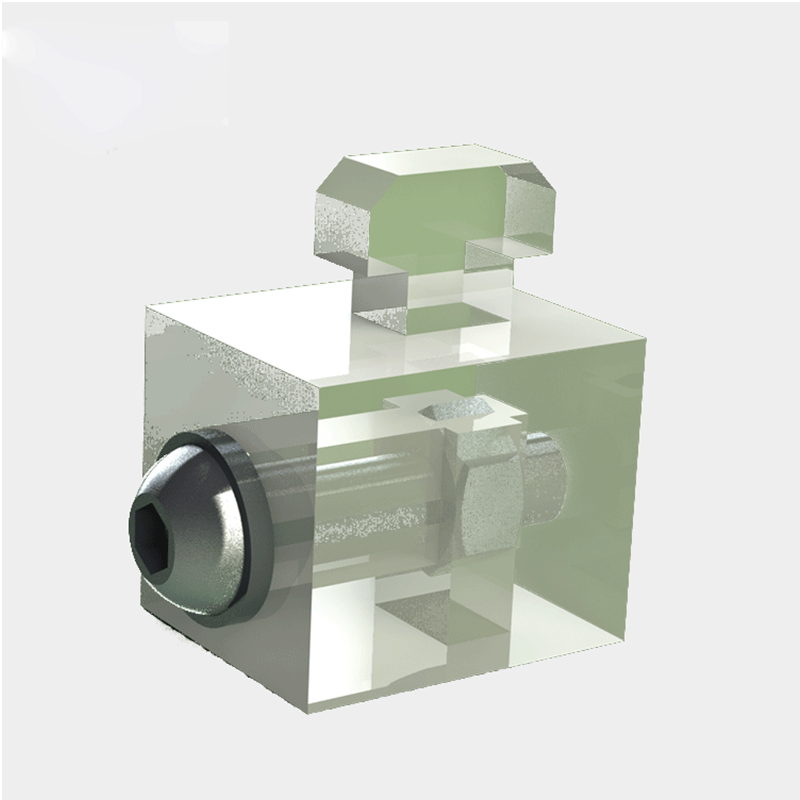

Panel clamp blocks is generally used for subsequent fastening of panel elements onto the profile groove.Stable holder for panel elements.Panel Clamp BlocksSeriesAluminium Profile Supplier Modular Assembly SystemGroupPanels and Attachment FittingsMaterialPlasticColorClearProduct Introduction>>DimensionsFeaturesDescriptionMatching FastenersUnit Weight(g/pcs)Part No.Panel mounting block (pcs)—114.16.01Panel mounting block (set)1xAN184.16.02 >>Related FastenersAN: ISO7380 round head screw (M6x25, Zinc plated CS) Washer (Zinc plated CS) St nut (Zinc plated CS)FeatureFlexible assembly capacity – can be inserted into the profile groove at any position.Two mounting locations with different heights for the installation of the panel.A square nut was inserted in the center of the block, with which the panel could be secured by a screw connection.InstallationTwisting the panel block into the profile groove.Sliding the block within the groove to the position aligns with the bore on the panel.Fastening the panel to the blocks with the matching fasteners.Bulk Storage for Standard Profiles and FittingsSufficient stock for strut profiles and accessories ensures timely production and delivery.
