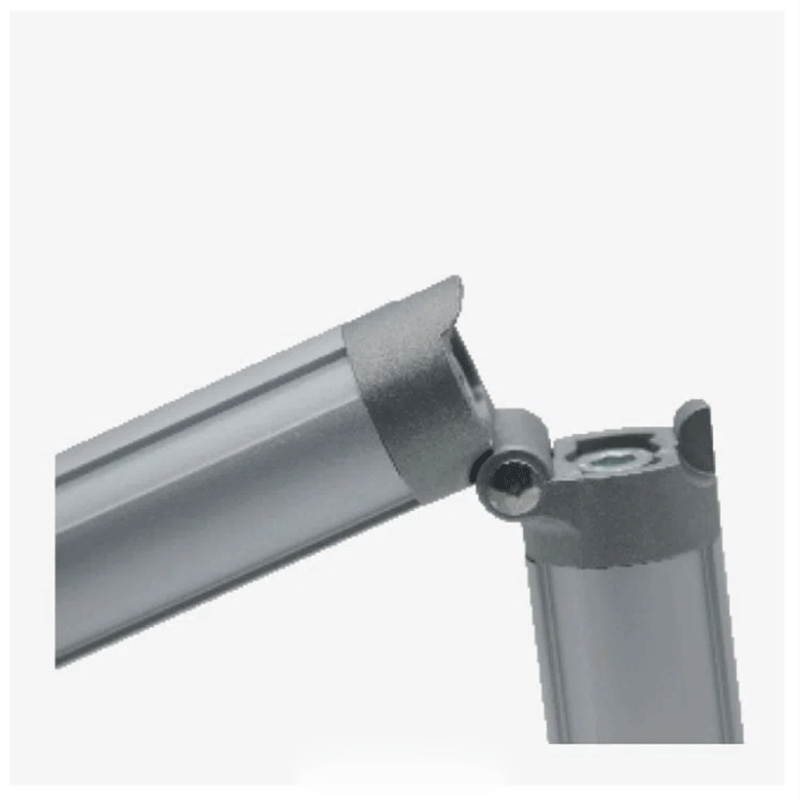

Metallic accessories compatible to lean tube frames in construction of lean production line, such as workbench, material shuttle, trolley.Lean Pipe SystemSeriesLean Pipe SystemProfile GroupAccessoriesPD305*235*165(mm)Product Introduction>>Dimensions and Parameters of Metallic ConnectorsPart No.FeaturesNet Weight (g/m)PQ (set)Total Weight (kg)RTAE28-0115.52003.4Plate Positioner – Used for assembly of plate and frame.RTAE28-0280.5968Caster Supporter – Connection between the free caster and frame.RTAE28-0319.755611.2Slider Located Ring – Used for slider set location on horizontal direction.RTAE28-045522512.7Locate Support – Used for slider set location on vertical directionRTAE28-05–––Elastic Appendage – Used for fixing frame board or installing other accessories at any position. Matching to RTAE28-SM05/ SM06.RTAE28-069.210009.5Hangtag Buckle – Hang operation card for reading.RTAE28-071228010.1Hinger Joint – Generally, apply for flexible workbench assembly. Can be used for designing of folding structure.RTAE28-088115012.5Rotating Joint – Matched with RTAJ28-A01, 2 pieces can make up to roller structure.RTAE28-095550208Metal Insert – Prevent frame end from being worn, used as end cap for 28mm GF.RTAE28-106922816Angle Joint – Used for product design of any angle, multiple combinations can be designed into a specific geometrics structure.RTAE28-11–––T Slot Frame Block – End supporter of T slot frame, also used as shift.RTAE28-12–––Rotator – Used as bearing pedestal, can design the revolving device.RTAE28-13–––Linear Motion Module – Used for linear motion for 28mm frame.RTAE28-2817302507.8Foot Connector – For the purpose of anti-static matched with RTAE28-3810C. Can be used for assembly of screw caster.RTAE28-3810A8520017.3Anti-skidding Adjustable Foot Base – Suitable for worktable and other supported products height adjustment anti-skidding.RTAE28-3810B5920012.0Nylon Adjustable Foot Base – Suitable for worktable and other supported products height adjustment slightly.RTAE28-3810C7020014.3Metal Adjustable Foot Base – Suitable for worktable and other structure height adjustment, anti-static and wear resistance.RTAE28-LM08/M0616.85/ 18.33––Blocks and Nuts – Matched with T slot frame of both 28mm and 43mm.RTAE28-SM05/SM067.47/ 6.98––Blocks and Nuts – Matched with RTAE28-SM05.RTAE28-L37D321404.8Slider Fixed Type – Matching with 28mm frame, used for axial horizontal straight-line sliding.RTAE28-L37Z321404.8Slider Rotating Type – Matching with 28mm frame, used for axial horizontal straight line sliding and rotating around the axis.RTAE-2L/3L100（158）22（16）2.48（2.78）Sockets (double/ triple) – Used for power access of electronic equipment and tools on production line or station.Application of Lean Pipe SystemThe lean tube series offered by Synrise Industries (Dalian) Co.,Ltd. has a wide range of accessories. Moving parts, particularly, include various products such as connectors for rotary motion, fittings for controlling movement, and many choices of corocon.You can realize and imaginable design of lean production line with this powerful system, such as workbench, rack, shooter ect.Advantage1. User-friendly, easy and fast constructed.2. Cost-optimized aluminum profile frame for medium-carrying loaded duty.3. Assembly freedom can realize any of your imaginable design.
