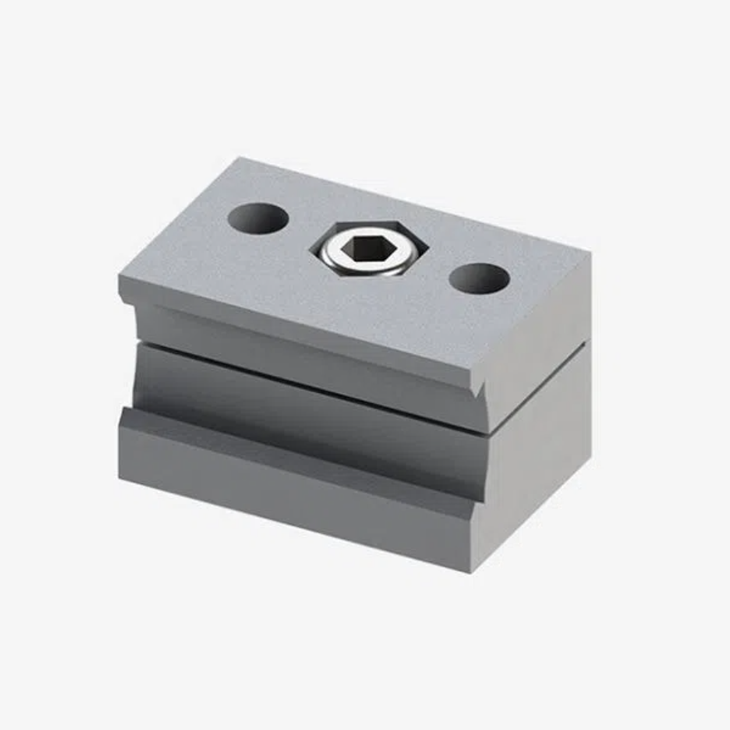

Main structure required to install grooved pulley and other threaded (M6) accessories. As shown in the following detail, sockets could be screwed to this connector for workbench.SeriesLean Pipe SystemProfile GroupConnectorMaterialAluminum Alloy ADC 12Surface TreatmentAnodizedColorSilver greyProduct Introduction>>Detail and Assembly StepsStep 1: There are claws in 4 directions of the frame, and fix by pinching the connector in the claws. Fixing can be done with one wrench, which is very easy.Step 2: Adjust the distance between two connectors until accessories could be assembled. Install the accessory with M6 hex socket screws.>>ParametersPart No.Net Weight (g/m)PQ (set)Total Weight (kg)PDRTAJ28-A026033619.5305*235*165(mm)Application of Lean Pipe SystemThe lean tube series offered by Synrise Industries has a wide range of accessories. Moving parts, particularly, include various products such as connectors for rotary motion, fittings for controlling movement, and many choices of corocon.You can realize and imaginable design of lean production line with this powerful system, such as workbench, rack, shooter ect.
