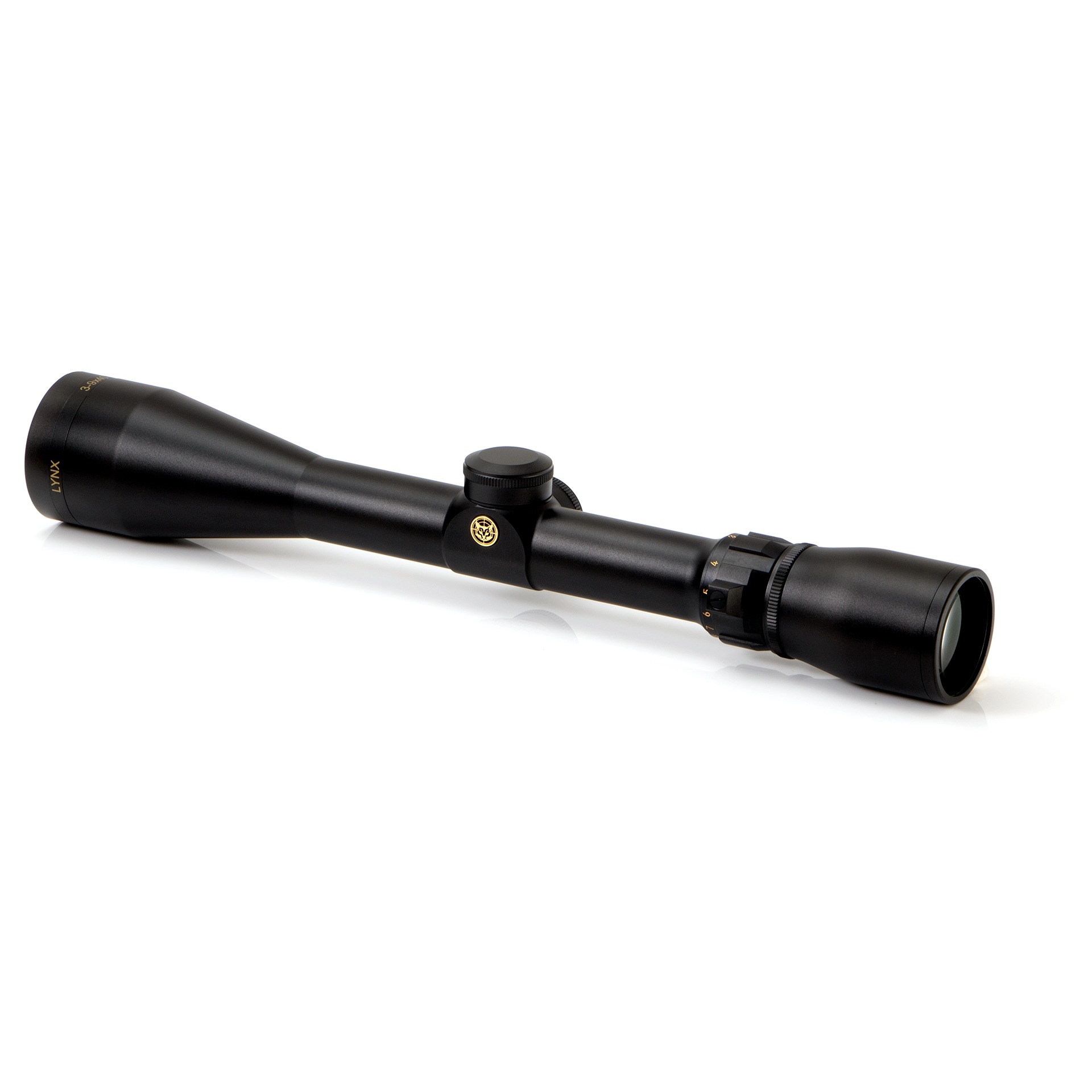

Description LYNX OPTICS LX2 3-9×40 LX2 3-9×40 is a lightweight 1” fixed-focus riflescope made for intermediate-distance walk and stalk hunting The adjustment controls are calibrated 1/4 MOA per click. Eye relief is a generous 90 mm, which makes this scope suitable for mounting onto most calibers. Variable magnification from 3x to 9x makes this scope well suited to hunting in the bush from 30 metres and open plain hunting up to 300 metres. Lynx Duplex reticle Features Parallax fixed at 100 m Lightweight (less than 500 grams). Great for walking and stalking. All lenses are fully multicoated and provide a sharp and bright image. 1/4 MOA adjustment controls with tool-less zero. Specifications 1 Low Power High Power 2 Actual Magnification 3x 9x 3 Exit pupil diameter 13.3mm 4.4mm 4 Eye-relief 98mm 100mm 5 Actual FOV 6.30 2.10 6 Resolving Power (seconds) 5 5 7 Objective diameter 40mm 8 Dioptre adjustment -1.5 to 1D 9 Total Windage adjustment range 50MOA 10 Total Elevation adjustment range 50MOA 11 Tube diameter 25.4mm 12 Water proof Positive internal pressure 300kPa. Submersible 1m for 60 minutes. 13 Recoil proof 1000G 14 Fog proof Dry nitrogen purged 15 Temperature operating range -20 to 71 16 Reticle Duplex 17 Battery type non 18 Parallax non 19 Eyepiece Lockable slow focus 20 Antireflective lens coating Fully multi coated (Light transmission 99.7%) 21 Lens elements 22 Total light transmission 92% 23 Windage / Elevation control Finger-adjustable 24 Windage click value 0.25MOA 25 Elevation click value 0.25MOA 26 Length 312.6 27 Weight 375g 28 Country of manufacture Japan
